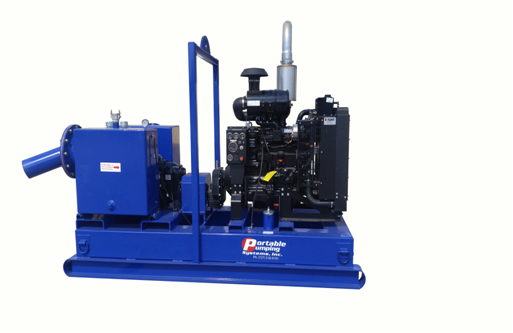

12 Inch Rotary Lobe Open Engine Skid Mounted

PPSI Rotary Wellpoint Pump





12RP-SK

12” Skid Unit

















 View and Print Specification Sheet

SPECIFICATIONS

Volume:

2650 GPM Max

CFM:

348 CFM

Ware Plates:

Stainless Ware Plates

Solids:

Up To 2.5” Compressible

Seals:

Duronite Seal Assembly

Working PSI:

Up To 25 PSI

Shut Downs:

Hi – Low Vacuum

ENGINE

Model:

John Deere 4045TF290 Diesel

Type:

Water Cooled 4 Cylinder

Start:

12 Volt Electric

Fuel:

Diesel fuel

Murphy Panel:

Engine Safety Shut Down For Low Oil PSI & Hi Water Temp

Horsepower

74.1 @ 2300rpm

PACKAGE

Skid:

110” L X 44” W X 64” T

Fuel Tank:

120 Gallons

Weight

5580 lbs

OPTIONS

  • Full Enclosure
  • Engine Enclosure
  • Choice Of Your Color


STANDARD FEATURES

* Lifting Bail  * Locking Fuel Cap * 8” X 8” *



  View and Print Specification Sheet
