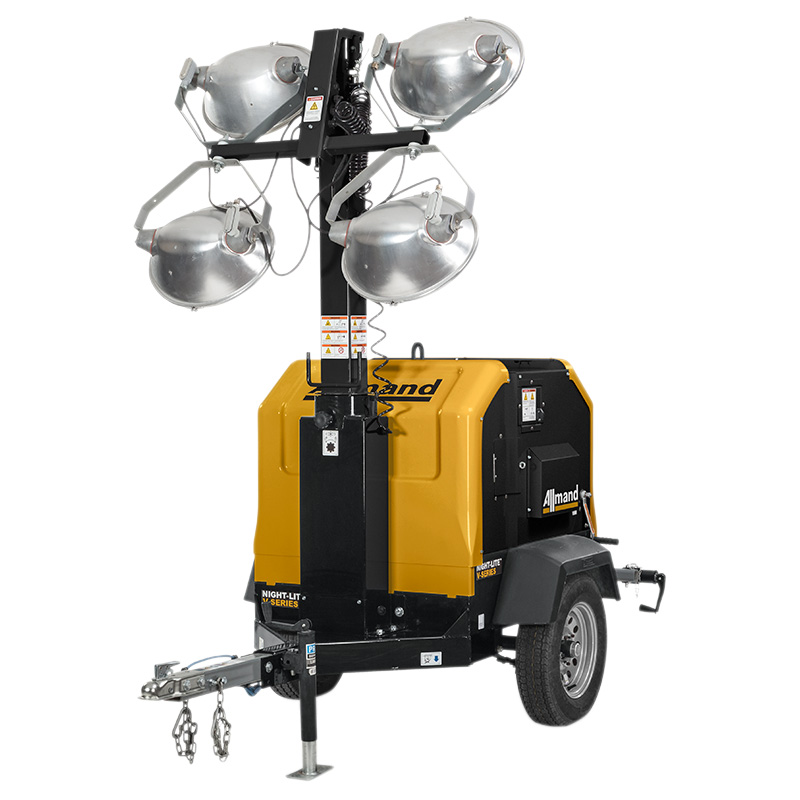

Night-Light™ V-Series



An ROI-driven solution, the Night-Lite™ V-Series is built with the efficiency, durability and performance you demand. It will run up to 155 hours between refueling (with LED's), and has a convenient fuel fill neck for quick refueling. Plus, it offers 542,000 total lumens from the four SHO-HD light fixtures and minimize freight costs because up to twenty units fit easily on a flatbed trailer.

Up to 155 Hour Run Time with LED's





Minimized Freight Costs





Simple, Easily Accessible Controls





Exterior Fuel Fill





Easy Fixture Adjustment





Download the product spec sheet for additional information.





Engine Brand Kubota
Engine Model D1005
EPA Emission Level Tier 4 Final
Prime Output @ Rated Speed of 1800 RPM (HP)** 11.7
Prime Power 7
Engine Electrical System 12 V electric; glow plug cold starting system
Battery (CCA @ 0° F - Standard) 550
Fuel Capacity 45
Operatine Time (hrs) (using four 1,250 W metal halide light fixtures) 72.6
Operating Time (hrs) (using four 320 W LED light fixtures) 155.2
Light Type Metal Halide SHO-HD fixture
Wattage 1,250
Lumens (per lamp) 135,500
Lumens (total) 542,000
Number of Luminaires- LED's 4
LED Light Type Two LED, 5000° K color temperature
LED Wattage 320
LED Lumens (per lamp) 38,500
LED Lumens (total) 154,000
Lighting Features Sequenced Lighting System (SLS™). System automatically turns on lights after engine start and delays engine shutdown to turn off lights first to prevent generator from shutting down while under load.
Generator (Alternator) 120 / 240 VAC capacitor-regulated
Frequency (Hz) 60
Phase 1
Outlets Standard - 20 A 120 VAC duplex GFCI outlet, plus 30 A 240 VAC 4-Wire Twist Lock (NEMA L14-30R)
Tower Maximum Height 24' - 6"
Tower Features Structure - five section tubular steel design Actuation - manual winch - standard - electric winch - optional Tower rotation - complete tower rotates 359° Guide pads - polyethylene self lubricating
Power Cable Coiled cable secured at top of first, third and fifth sections to minimize possibility of tangling.
Fixture Positioning Fixtures can be adjusted with tower in lowered position. Light tower with fixtures can be rotated 359° at any heightt
Towing Connection Adjustable height combination 2 in. (50.8 mm) ball coupler, 3 in. (76.2 mm) lunette ring for pintle hitch
Trailer Fluid Containment System (FCS) holding up to 110% of all on-board fluids Frame - Formed, welded steel frame Axle - tubular axle with elliptical leaf springs Tires - ST175/80D13 load range 'C' Standard features - Forklift pockets - Lift ring - Tie down slots - Removable tongue
Trailer Lighting Stop, turn, tail lights / side marker lights / illuminated license plate bracket with 4-way flat connector
Operating Wind Speed 55
Stabilizers Three-point design - tongue jack, two retractable side outriggers at rear of trailer
Shipping Weight 1,990
Gross Vehicle Weight Rating (GVWR) 2,250
Length - Transport Position 110.1
Width - Transport Position 53.9
Width - Outriggers Deployed 104.7
Height Mast Lowered - Transport Position 54.5 107.4 in
Height - Tower Raised 294 in or 24' - 6"
Shipping 18 units on a 48’ flatbed trailer 20 units on a 53’ flatbed trailer
Options Arctic Package - Heavy duty battery - Block heater (120 VAC) LED Package - (4) LED Light FIxtures Telematics Electric Winch 2 in (50.8 mm) Bulldog® coupler Custom Paint
Manuals DownloadIllustrated Parts List - English



* Balloon light only included in raised dimension - balloon light is removed for transportation.

** Prime horsepower rating provided by engine manufacturer.

*** Prime generator electrical output per Allmand testing.
