Night - Lite Pro II LD Series

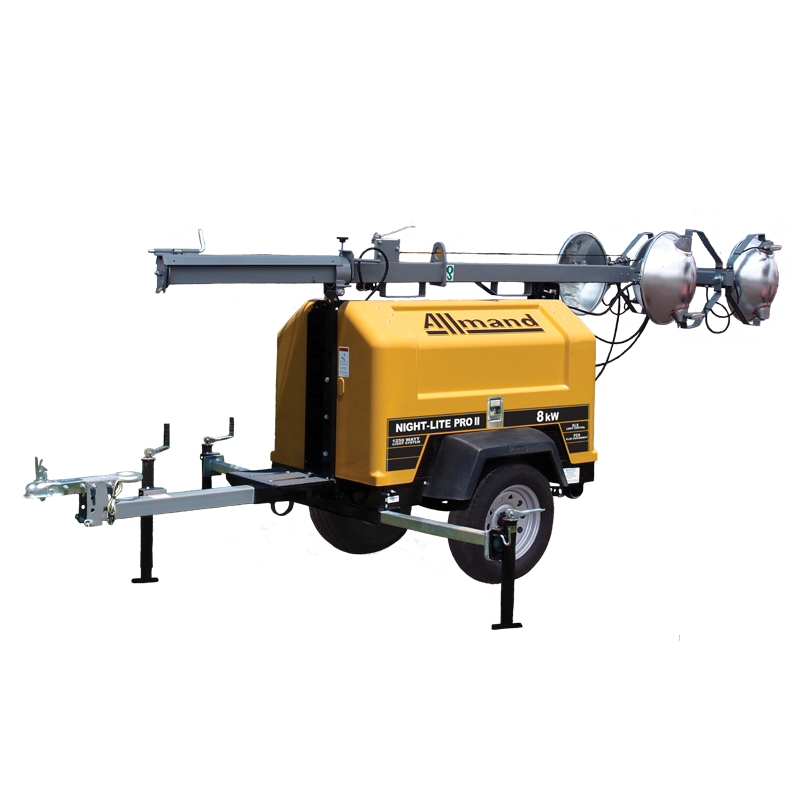

NIGHT-LITE PRO II® LD-SERIES™


The Allmand Night-Lite Pro II® LD-Series™, features the SHO-HD lamp fixtures that provide 135,500 lumens per lamp, more than competitive light towers. The 30 gallon polyethylene fuel tank, this eliminates contamination from rust and corrosion to keep your light tower running longer. The optional full fluid containment system also holds up to 110% of all on-board fluids, protecting sensitive environments from inadvertent leaks and spills. This dependable light tower will maximize your jobsite and keep it running all through the night while providing a number of other features that makes it the obvious choice compared to industry competitors.

SHO-HD parallel lamp fixtures

provide more lumens per fixture than competitive light towers



Gull-wing style doors

allow easy access to all major service components in the enclosure, resist impact damage, and will not rust



Captive latch

on tower support and outriggers eliminates the potential for lost pins



30 gallon polyethylene fuel tank

eliminates contamination from rust and corrosion commonly associated with metal tanks and provides up to 65 hours of continuous operation


Download the product spec sheet for additional information.



Engine Brand Kubota
Engine Model D1005
EPA Emission Level Tier 4 Final
Prime Output @ Rated Speed of 1800 RPM (HP)** 11.7
Prime Power 7
Engine Electrical System 12 volt electric; glow plug cold starting system
Battery (CCA @ 0° F - Standard) 550
Fuel Capacity 30
Operatine Time (hrs) (using four 1,250 W metal halide light fixtures) 48
Number of Luminaires - Metal Halide 4
Light Type Metal Halide SHO-HD fixture
Wattage 1,250
Lumens (per lamp) 135,500
Lumens (total) 542,000
LED Lumens (total) 175
Lighting Features Sequenced Lighting System (SLS™). System automatically turns on lights after engine start and delays engine shutdown to turn off lights first to prevent generator from shutting down while under load.
Generator (Alternator) Standard - 120 / 240 VAC capacitor regulated
Frequency (Hz) 60
Phase 1
Outlets Standard - 20 A 120 VAC duplex GFCI outlet, plus 30 A 240 VAC 4-Wire Twist Lock (NEMA L14-30R)
Tower Maximum Height 350 In (8890 mm) or 29' - 2" (8.9 m) *
Tower Features Structure - 3 section tubular steel design Actuation - manual winch to bring tower to vertical position, and second manual winch to raise tower. Guide pads - polyethylene self lubricating
Power Cable Straight cable secured at top of each section to minimize possibility of tangling.
Fixture Positioning Fixtures can be adjusted with tower in lowered position. Light tower with fixtures can be rotated 359° at any height.
Towing Connection Adjustable height combination 2 in. ball, 3 in. pintle towing hitch Adjustable height Standard - 2 in (50.8 mm) ball coupler
Trailer Frame - Formed, welded steel frame Axle - tubular axle with elliptical leaf springs Tires - ST175/80D13 load range 'C' Doors - Reaction Injection Molded (RIM) gull-wing style with lockable latch Standard features - Remote engine oil drain easily accessible at rear of trailer - Forklift pockets - Lift ring - Tie down rings - Removable tongue Optional - Fluid Containment System (FCS) holding up to 110% of all on-board fluids - with Arctic Package
Trailer Lighting Stop, turn, tail lights / side marker lights / illuminated license plate bracket Standard - 4-way flat connector Optional - 7-way round pin Connector (SAE J560b) Optional - 7-way flat pin RV adaptor
Operating Wind Speed 55
Stabilizers Four-point design - tongue jack, two retractable side outriggers at front of trailer, rear jack
Shipping Weight 1,695
Gross Vehicle Weight Rating (GVWR) 2,200
Length - Transport Position 176
Length - Outriggers Deployed 125
Width - Transport Position 58
Width - Outriggers Deployed 99
Height Mast Lowered - Transport Position 73
Height - Tower Raised 350.0 in (8890 mm) or 29' - 2" (8.9 m) *
Shipping 12 units on a 48' or 53' flatbed
Options Arctic Package - heavy duty battery - block heater (120 VAC) - arctic hydraulic fluid CSA COMPONENTS FLUID CONTAINMENT Arctic Max Package Only available with Arctic Package - Heated fuel / water separator - Radiator cover LOW FUEL SHUT OFF SYSTEM LSC With E-Stop Package - LSC 2.1™ - Light Sensing Commander® - Automatically starts engine at sunset and shuts down engine at sunrise - programmable - Emergency Stop switch on exterior of machine AirStar Package Balloon Light features the Airstar Flex diffused lighting system using Allmand’s exclusive bulbs. This system provides reduced glare while still illuminating a large area. 2 in (50.8 mm) Bulldog® coupler Engine Air Intake Shut-Off Valve Telematics Custom Paint Skid Mount available on Standard SKUs
Manuals DownloadWiring Diagram Schematic - English
DownloadInstruction Sheet - English, Spanish, French
DownloadOperator's Manual - English, Spanish, French
DownloadIllustrated Parts List - English
DownloadIllustrated Parts List - English
DownloadWiring Diagram Schematic - English
DownloadInstruction Sheet - English, Spanish, French
DownloadOperator's Manual - English, Spanish, French
DownloadIllustrated Parts List - English
DownloadWiring Diagram Schematic - Multi-Language
DownloadOperator's Manual - Multi-Language
DownloadIllustrated Parts List - English
DownloadSetup Guide - Multi-Language
DownloadSetup Guide - Multi-Language
DownloadIllustrated Parts List - English
DownloadWiring Diagram Schematic - English
DownloadInstruction Sheet - English, Spanish, French
DownloadOperator's Manual - English, Spanish, French
DownloadOperator's/Setup Manual - English



*Balloon light only included in raised dimension - balloon light is removed for transportation.

**Prime horsepower rating provided by engine manufacturer

***Prime generator electrical output provided by Allmand testing

Disclaimer: Allmand has a policy of continuous product improvement and reserves the right to modify its specifications at any time and without prior notice.
