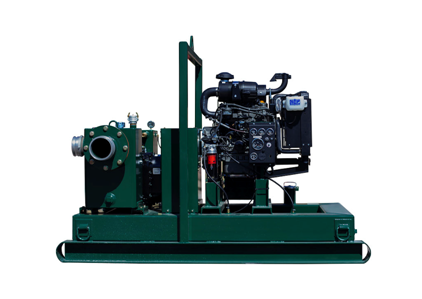

8 Inch Rotary Lobe Open Engine Skid Mounted

PPSI Rotary Wellpoint Pump





8RPBD-SK

8” Skid Unit

















 View and Print Specification Sheet

SPECIFICATIONS

Volume:

1330 GPM Max

CFM:

174 CFM

Ware Plates:

Stainless Ware Plates

Solids:

Up To 2” Compressible

Seals:

Duronite Seal Assembly

Working PSI:

Up To 25 PSI

Shut Downs:

Hi – Low Vacuum

ENGINE

Model:

Yanmar 4TNV88 Diesel

Type:

Water Cooled 4 Cylinder

Start:

12 Volt Electric

Fuel:

Diesel fuel

Murphy Panel:

Engine Safety Shut Down For Low Oil PSI & Hi Water Temp

Horsepower

30.1 @ 3000rpm

PACKAGE

Skid:

85” L X 44” W X 64” T

Wheels

N/A---- Skid Mounted

Hitch

N/A

Weight

4280 lbs

OPTIONS

  • Sound Attenuated
  • Trailer Mounted
  • Choice Of Your Color


STANDARD FEATURES

* Lifting Bail  * Locking Fuel Cap * 6” X 6” Male Camlocks *
