Night-Lite Pro II® V-Series®

Night-Lite Pro II® V-Series

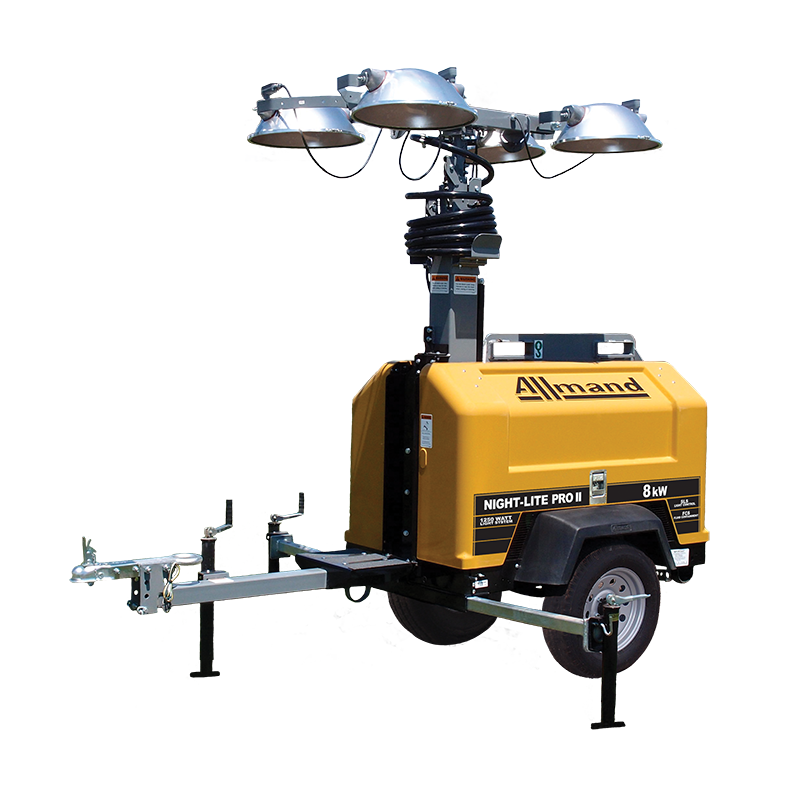

Allmand's Night-Lite Pro II® V-series® offers four different engine models to meet your jobsite needs. The V-series® features a vertical tower with power cable encased in Nycoil™ flexible tubing to eliminate tangling and stretching, while protecting the tower wiring. The SHO-HD lamp fixtures provide 135,500 lumens per lamp, more than competitive light towers. With a 30 gallon polyethylene fuel tank and full fluid containment system holding up to 110% of all on-board fluids to protect sensitive environments from inadvertent leaks and spills. This dependable light tower will maximize your jobsite and keep it running all through the night.

Vertical tower

Vertical tower cable encased in Nycoil™ flexible tubing eliminates tangling and stretching while protecting the mast wiring from cuts and abrasions


SHO-HD parallel lamp fixtures

provide more lumens per fixture than competitive light towers


Gull-wing style doors

allow easy access to all major service components in the enclosure, resist impact damage, and will not rust


Full fluid containment system

holds up to 110% of the fuel and engine oil capacity to protect sensitive environments from inadvertent leaks and spills

Download the product spec sheet for additional information.


Engine Brand Caterpillar
Engine Model C1.1
EPA Emission Level Tier 4 Final
Prime Output @ Rated Speed of 1800 RPM (HP)** 13.3
Prime Power 8
Engine Electrical System 12 volt electric; glow plug cold starting system
Battery (CCA @ 0° F - Standard) 550
Fuel Capacity 30
Operatine Time (hrs) (using four 1,250 W metal halide light fixtures) 50
Operating Time (hrs) (using four 320 W LED light fixtures) 79
Number of Luminaires - Metal Halide 4
Light Type Metal Halide SHO-HD fixture
Wattage 1,250
Lumens (per lamp) 135,500
Lumens (total) 542,000
Number of Luminaires- LED's 4
LED Light Type Two LED, 5000° K color temperature
LED Wattage 320
LED Lumens (per lamp) 38,500
LED Lumens (total) 154,000
Lighting Features Sequenced Lighting System (SLS™). System automatically turns on lights after engine start and delays engine shutdown to turn off lights first to prevent generator from shutting down while under load.
Generator (Alternator) Standard - 120 / 240 VAC capacitor regulated
Frequency (Hz) 60
Phase 1
Outlets Standard - 20 A 120 VAC duplex GFCI outlet, plus 30 A 240 VAC 4-Wire Twist Lock (NEMA L14-30R)
Tower Maximum Height 318.0 in (8077 mm ) or 26' - 6" (8.1 m)
Tower Features Structure - six section tubular steel design Actuation - hydraulic cylinder Guide pads - polyethylene self lubricating
Power Cable Power cable encased in Nycoil™ flexible tubing
Fixture Positioning Light bar with fixtures can be rotated 359° and fixtures can be adjusted with tower in lowered position.
Towing Connection Adjustable height combination 2 in. ball, 3 in. pintle towing hitch
Trailer Frame - Formed, welded steel frame Axle - tubular axle with elliptical leaf springs Tires - ST175/80D13 load range 'C' Doors - Reaction Injection Molded (RIM) gull-wing style with lockable latch Standard features - Fluid Containment System (FCS) holding up to 110% of all on-board fluids - Remote engine oil drain easily accessible at rear of trailer - Forklift pockets - Lift ring - Tie down rings - Removable tongue
Trailer Lighting Stop, turn, tail lights / side marker lights / illuminated license plate bracket Standard - 4-way flat connector
Operating Wind Speed 55
Stabilizers Four-point design - tongue jack, two retractable side outriggers at front of trailer, rear jack
Shipping Weight 1,905
Gross Vehicle Weight Rating (GVWR) 2,200
Length - Transport Position 125
Length - Outriggers Deployed N/A
Width - Transport Position 68
Width - Outriggers Deployed 99
Height Mast Lowered - Transport Position 103
Height - Tower Raised 318.0 in (8077 mm) or 26' - 6" (8.1 m)
Shipping 16 units on a 48' or 53' flatbed
Options Arctic Package - heavy duty battery - block heater (120 VAC) - arctic hydraulic fluid CSA COMPONENTS FLUID CONTAINMENT Arctic Max Package Only available with Arctic Package - Heated fuel / water separator - Radiator cover LOW FUEL SHUT OFF SYSTEM W/WARNING BEACON LED Package - (4) LED Light FIxtures LSC With E-Stop Package - LSC 2.1™ - Light Sensing Commander® - Automatically starts engine at sunset and shuts down engine at sunrise - programmable - Emergency Stop switch on exterior of machine AirStar Package Balloon Light features the Airstar Flex diffused lighting system using Allmand’s exclusive bulbs. This system provides reduced glare while still illuminating a large area. Telematics Package 2 in (50.8 mm) Bulldog® coupler Engine Air Intake Shut-Off Valve Custom Paint Skid Mount available on Standard SKUs
Manuals DownloadIllustrated Parts List - English
DownloadWiring Diagram Schematic - English
DownloadInstruction Sheet - English, Spanish, French
DownloadOperator's Manual - English, Spanish, French
DownloadIllustrated Parts List - English
DownloadWiring Diagram Schematic - English
DownloadInstruction Sheet - English, Spanish, French
DownloadOperator's Manual - English, Spanish, French
DownloadOperator's/Setup Manual - English
DownloadIllustrated Parts List - English



*Balloon light only included in raised dimension - balloon light is removed for transportation.

**Prime horsepower rating provided by engine manufacturer.

***Prime generator electrical output provided by Allmand testing

Disclaimer: Allmand has a policy of continuous product improvement and reserves the right to modify its specifications at any time and without prior notice.
