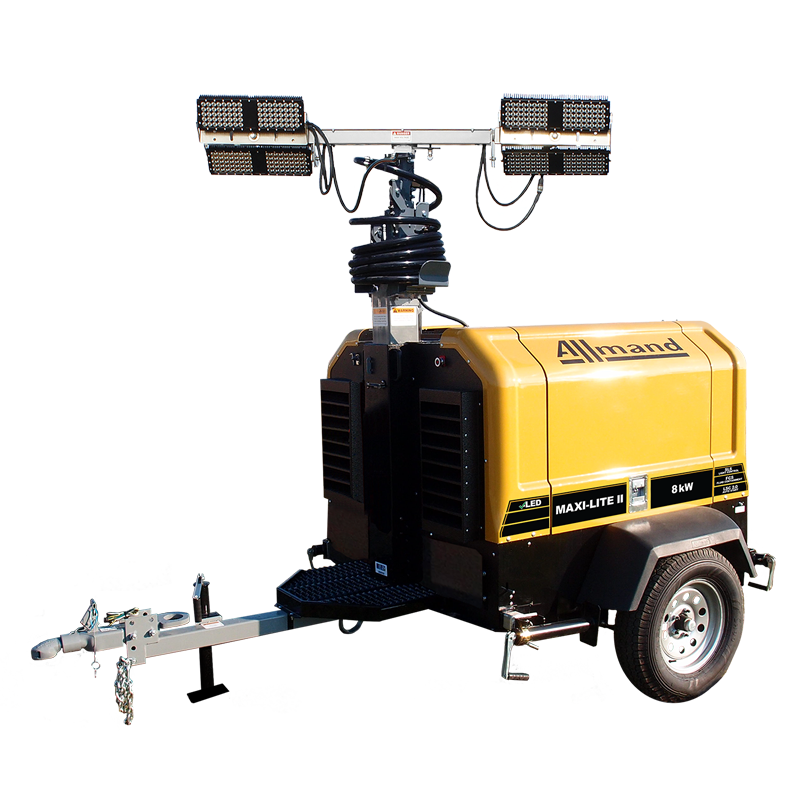

MAXI-LITE® II V-Series® 4-Light

MAXI-LITE® II V-Series® 4-Light



Whatever your jobsite needs, the Maxi-Lite® II V-Series® 4-Light can deliver, with multiple engine options and 542,000 total lumens of lighting. It features 100 gallons of fuel capacity to provide up to 277 hours of non-stop operation (with LED's), and when you need to refuel, the 4 inch fill neck makes it much quicker. The gull-wing style doors offer easy access to engine and generator, but with remote oil and engine coolant drains, rear control / outlet panel and Allmand reliability, you will rarely need to use them. Built with a rugged trailer frame with Fluid Containment, hydraulically actuated tower and ability to withstand 65 MPH steady winds, this light tower will deliver the goods to get the job done right.

SLS™ Sequenced Light System™

Provides control for the sequencing of the lights on and off and provides controlled engine shutdown for high coolant temperature and low engine oil pressure.



100 Gallon Polyethylene Fuel Tank

With convenient 4-inch filler neck provides up to 175 hours of continuous operation.



Full fluid containment system

Holds up to 110% of the fuel and engine oil capacity to protect sensitive environments from inadvertent leaks and spills.



Five-Point Stabilizer Design

Allows the light tower to withstand wind gusts up to 65 mph.


Download the product spec sheet for additional information.





Engine Brand Isuzu
Engine Model 4LE1
EPA Emission Level Tier 4 Interim (Canada Only)
Prime Output @ Rated Speed of 1800 RPM (HP)** 32.1
Prime Power 20
Engine Electrical System 12 V; glow plug cold starting
Battery (CCA @ 0° F - Standard) 550
Fuel Capacity 100
Operatine Time (hrs) (using four 1,250 W metal halide light fixtures) 121
Operating Time (hrs) (using four 320 W LED light fixtures) 172
Number of Luminaires - Metal Halide 4
Light Type Metal Halide SHO-HD fixture
Wattage 1,250
Lumens (per lamp) 135,500
Lumens (total) 542,000
Number of Luminaires- LED's 4
LED Light Type Two LED, 5000° K color temperature
LED Wattage 320
LED Lumens (per lamp) 38,500
LED Lumens (total) 154,000
Lighting Features Sequenced Lighting System (SLS™). System automatically turns on lights after engine start and delays engine shutdown to turn off lights first to prevent generator from shutting down while under load.
Generator (Alternator) Standard-120/240 VAC automatic voltage regulation
Frequency (Hz) 60
Phase 1
Outlets Standard - (2) 20 A 120 VAC duplex GFCI outlets, (3) 30 A 240 VAC 4-Wire Twist Lock (NEMA L14-30R), (1) 50 A 240 VAC RV (NEMA L14-50R)
Tower Maximum Height 320
Tower Features Structure - six section tubular steel design Actuation - hydraulic cylinder Guide pads - polyethylene self lubricating Manual winch to raise Balloon Light from installation position to operating position
Power Cable Power cable encased in Nycoil™ flexible tubing
Fixture Positioning Light bar with fixtures can be rotated 359° and fixtures can be adjusted with tower in lowered position.
Towing Connection Adjustable height combination 2 in. (50.8 mm) ball coupler, 3 in. (76.2 mm) lunette ring for pintle hitch Adjustable height Standard - 2 in (50.8 mm) ball coupler
Trailer Frame - Formed, welded steel frame Axle - tubular axle with elliptical leaf springs Tires - ST205/75R 15 radial load range 'C' Doors - Stamped steel gull-wing style with lockable latch Standard features - Fluid Containment System (FCS) holding up to 110% of all on-board fluids - Remote engine oil and coolant drain easily accessible at rear of trailer - Forklift pockets - below-the-frame - Lift ring - Tie down rings - Removable tongue
Trailer Lighting Five-point design - tongue jack, two retractable side outriggers at front of trailer, two retractable side outriggers at rear of trailer
Operating Wind Speed 65
Shipping Weight 3,430
Gross Vehicle Weight Rating (GVWR) 4,300
Length - Transport Position 127
Length - Outriggers Deployed 167
Width - Transport Position 77
Width - Outriggers Deployed 151
Height Mast Lowered - Transport Position 105
Height - Tower Raised 320
Shipping 7 units on a 48' or 53' flatbed
Options Arctic Package - Heavy duty battery - Block heater (120 VAC) - Interior work light - Arctic hydraulic fluid Arctic Max Package (Only available with Arctic Package) - Heated fuel / water separator - Radiator cover - Low fuel beacon - Adjustable air vent cover panels - Diesel fired block heater - Dual heavy duty batteries - LSC With E-Stop Package LED Package - (4) LED Light FIxtures LSC With E-Stop Package - LSC 2.1™ - Light Sensing Commander® - Automatically starts engine at sunset and shuts down engine at sunrise - programmable - Emergency Stop switch on exterior of machine AirStar Package Balloon Light features the Airstar Flex diffused lighting system using Allmand’s exclusive bulbs. This system provides reduced glare while still illuminating a large area. Engine Air Intake Shut-Off Valve 2 in (50.8 mm) Bulldog® Coupler Telematics Custom Paint Skid Mount available on Standard SKUs
Manuals DownloadIllustrated Parts List - English
DownloadWiring Diagram Schematic - English
DownloadInstruction Sheet - English, Spanish, French
DownloadOperator's Manual - English, Spanish, French
DownloadIllustrated Parts List - English





*Balloon light only included in raised dimension - balloon light is removed for transportation.

**Prime horsepower rating provided by engine manufacturer

***Prime generator electrical output provided by Allmand testing

Disclaimer: Allmand has a policy of continuous product improvement and reserves the right to modify its specifications at any time and without prior notice.
