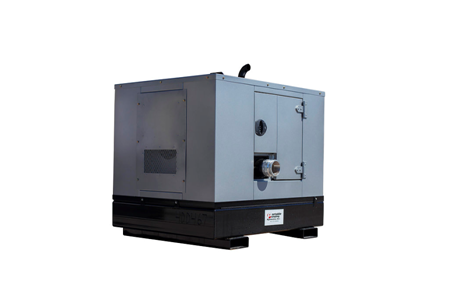

4 Inch Double Diaphragm Quiet Pack Diesel Pump
|
4” DoubleDiaphragm Pump |
|
4DDQP-YD-SK-35 4-Inch Diaphragm Pump Quiet Pack |
|
|
|
View and Print Specification Sheet
|
SPECIFICATIONS |
|||
|
Volume: |
327gpm / 19,620 GPH |
||
|
Run Time: |
135 Hours |
||
|
Valve Seats: |
Stainless Steal |
||
|
Valve Assembly: |
Flapper Style with Stainless Hardware |
||
|
Diaphragm: |
Red Neoprene Rubber |
||
|
Gear Box: |
Worm Gear Oil Lubricated |
||
|
Diaphragm Rods: |
Solid Connecting Rods |
||
|
Solid Handling |
Solids handling cap. Up to 3.5” diameter |
||
|
ENGINE |
|||
|
Model: |
Yanmar L100 Diesel |
||
|
Type: |
Air Cooled |
||
|
Start: |
12 Volt Electric w/Backup Recoil |
||
|
Fuel: |
Diesel fuel |
||
|
Fuel Tank Cap. |
35 Gallons |
||
|
Horsepower |
5.0 @ 2000rpm |
||
|
DBA |
69 dba @ 23ft. |
||
|
PACKAGE |
|||
|
Axle |
Forklift Pockets |
||
|
Wheels |
N/A |
||
|
Hitch |
N/A |
||
|
Weight |
|
||
|
OPTIONS |
|||
|
|
||
|
STANDARD FEATURES |
|||
|
* Lifting Bail *4” Male Cams *Coupling Guard |
|||
|
*Engine Protector *Low Oil Shutdown *Locking Battery Box |
|||
|
View and Print Specification Sheet Portable Pumping Systems Inc. 4760 Spring Ave-Clearwater, Fl 33762 Www.PortablePumpingSystems.com PH: (727) 518-9191 FAX: (727) 525-1511 |
|||
