Trash Pumps

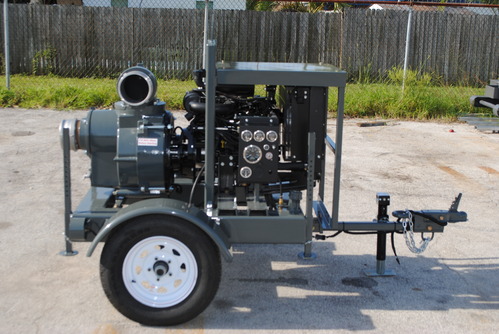

PPSI 6” TRASH PUMP

/_uploaded_files/trashpump01.jpg

MODEL #

PPSI 483606-6T-TR



SPECIFICATIONS

Volume

1000gpm max – 98’ max head

Volute

Cast Iron

Impeller

Stainless Steel

Seals

Silicon Carbide & Ceramic

Size

6” x 6”

Lift

Primes To 20’

Solids

Up to 3”



ENGINE

Model

Yanmar Diesel

Type

Water Cooled

Start

12V Electric

Fuel

Diesel

HP

23.6 HP



PACKAGE

Axle

Torsion Flex

Wheels

13” Radial On White Spoke

Hitch

Reversible 2” Ball / Military

Weight

750 lbs

The PPSI 6” pump is designed for applications requiring

high volume flow and solid/debris handling capabilities.

Pump is constructed of heavy duty sand cast aluminum

With cast iron & stainless internal parts for wear resistance

and durability.

At Portable Pumps we put water in its place
/_uploaded_files/trashpump02.png

Standard Features

  • Lifting Bail
  • Front Jack
  • Safety Chains
  • 6” Male Cams
  • Powder Coated



Options

  • Skid Mounted
  • DOT Light Package
  • Paint Your Colors

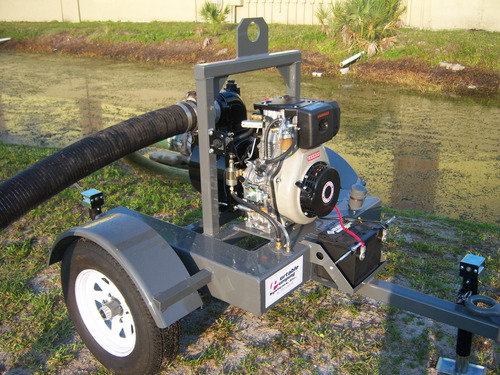

PPSI 4” TRASH PUMP

/_uploaded_files/trashpump-4-inch.jpg

MODEL #

PPSI 483606-6T-TR



SPECIFICATIONS

Volume

640gpm max – 105’ max head

Volute

Cast Iron

Impeller

Cast Iron

Seals

Silicon Carbide & Ceramic

Size

4” x 4”

Lift

Primes To 20’







ENGINE

Model

Yanmar Diesel

Type

Air Cooled

Start

12V Electric

Fuel

Diesel

HP

9.1hp @ 3600 rpm



PACKAGE

Axle

Torsion Flex

Wheels

13” Radial On White Spoke

Hitch

Reversible 2” Ball / Military

Weight

350 lbs



At Portable Pumps we put water in its place
/_uploaded_files/hose1.jpg

Standard Features

  • Lifting Bail
  • Front & Rear Jacks
  • Safety Chains
  • 4” Male Cams
  • Fenders
  • Extended Run Tank



Options

  • Skid Mounted
  • DOT Light Package
  • Engine Protector
  • Paint Your Colors
