4 inch Double Diaphragm Diesel Pump w/ Economy Trailer

4” Double Diaphragm Pump





4DD-YD-TR-13-EC

4-Inch Diaphragm Pump

Economy Trailer

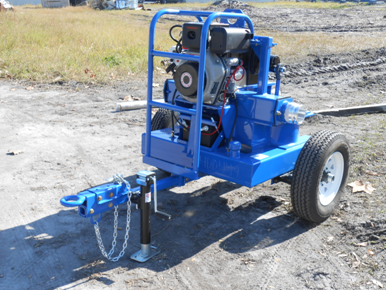

 4 inch double diaphragm basic trailer













 View and Print Specification Sheet

SPECIFICATIONS

Volume:

327gpm / 19,620 GPH

Run Time:

52 Hours Per 13 Gallon Tank

Valve Seats:

Stainless Steal

Valve Assembly:

Flapper Style with Stainless Hardware

Diaphragm:

Red Neoprene Rubber

Gear Box:

Worm Gear Oil Lubricated

Diaphragm Rods:

Solid Connecting Rods

Solid Handling

Solids handling cap. Up to 3.5” diameter

ENGINE

Model:

Yanmar L100 Diesel

Type:

Air Cooled

Start:

12 Volt Electric w/Backup Recoil

Fuel:

Diesel fuel

Fuel Tank Cap.

13 Gallons

Horsepower

5.0 @ 2000rpm

PACKAGE

Axle

Torsion Flex

Wheels

13” Radial On White Spoke

Hitch

Adjustable 2" Ball or Military

Weight

1250 lbs

OPTIONS

  • Larger fuel tank for longer run
  • Skid Mounted
  • Fenders - Lights


STANDARD FEATURES

* Lifting Bail  *Front Jack  *1 Rear Leveling Leg  *Safety Chains  *4” Male Cams  *Coupling Guard

*Engine Protector  *Low Oil Shutdown  *Locking Battery Box
