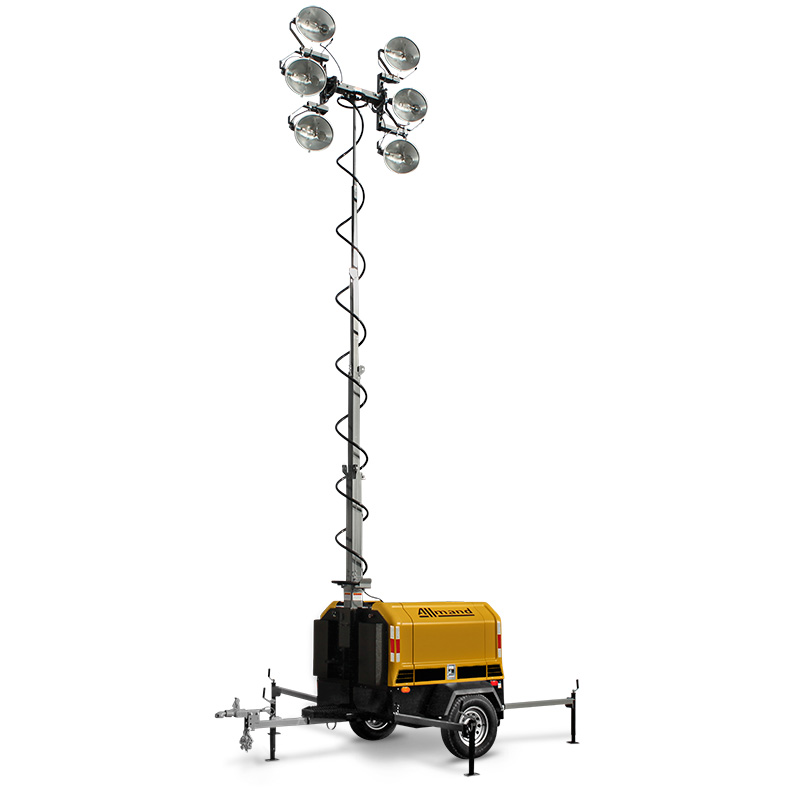

Maxi-Lite® Pro

Maxi-Lite® Pro



The Maxi-Lite Pro provides best-in-class reliability and the features your team needs to get the job done. With four or six SHO-HD light fixtures providing up to 813,000 lumens of light, and with up to 20 kW of power available there is plenty of power to light a jobsite. The Maxi-Lite Pro comes fully equipped with an operational beacon, wheel chocks, fire extinguisher, emergency stop switch and Secondary Fixture Restraints (SFR). Additionally, the unique LSC™ automatic Light Sequence Commander® will automatically start the unit at sunset and shuts down at sunrise, or program the start/stop times to your jobsite needs. All this technology delivers the worry-free lighting for your team to focus on the task at hand.

SLS Sequenced Light System





LSC™ Automatic Light Sequence Commander





Fire Extinguisher





Reflective Striping





Operational Beacon





Emergency Stop Switch





Wheel Chocks





Low Fuel Warning Light





Secondary Fixture Retention (SFR) System





Two-Stage Air Filter





Exhaust Shield and Muffler Wrap





Download the product spec sheet for additional information.






Engine Brand Caterpillar
Engine Model C1.1
EPA Emission Level Tier 4 Final
Prime Output @ Rated Speed of 1800 RPM (HP)** 13.3
Prime Power 8
Engine Electrical System 12V, Glow plug cold starting
Battery (CCA @ 0° F - Standard) 775
Fuel Capacity 100
Operatine Time (hrs) (using four 1,250 W metal halide light fixtures) 166.7
Operating Time (hrs) (using four 320 W LED light fixtures) 263.2
Number of Luminaires - Metal Halide 4
Light Type Metal Halide SHO-HD fixture
Wattage 1,250
Lumens (per lamp) 135,500
Lumens (total) 542,000
Number of Luminaires- LED's 4
LED Light Type Two LED, 5000° K color temperature
LED Wattage 320
LED Lumens (per lamp) 38,500
LED Lumens (total) 154,000
Generator (Alternator) Standard - 120 / 240 VAC capacitor regulated
Frequency (Hz) 60
Phase 1
Outlets Standard - (2) 20 A 120 VAC duplex GFCI outlets, (2) 30 A 240 VAC 4-Wire Twist Lock (NEMA L14-30R)
Tower Maximum Height 320.0 in (8128 mm) or 26' - 8" (8.1 m)
Tower Features Structure - six section tubular steel design Actuation - hydraulic cylinder Guide pads - polyethylene self lubricating Secondary Fixture Retention
Power Cable Power cable encased in Nycoil™ flexible tubing
Fixture Positioning Light bar with fixtures can be rotated 359° and fixtures can be adjusted with tower in lowered position.
Towing Connection Adjustable height combination 2 in (50.8 mm) Bulldog® coupler, 3 in. (76.2 mm) lunette ring for pintle hitch Adjustable height Standard - 2 in (50.8 mm) Bulldog® coupler
Trailer Frame - Formed, welded steel frame
Trailer Lighting Stop, turn, tail lights / side marker lights / illuminated license plate bracket Standard - 4-way flat connector
Operating Wind Speed 65 MPH (104.6 km/h)
Stabilizers Axle - tubular axle with elliptical leaf springs Tires - ST205/75R 15 radial load range 'C' Doors - Stamped steel gull-wing style with lockable latch Standard features - Fluid Containment System (FCS) holding up to 110% of all on-board fluids - Remote engine oil and coolant drain easily accessible at rear of trailer - Forklift pockets - below-the-frame - Lift ring - Tie down rings - Removable tongue - Fire extinguisher bracket - Wheel chocks (4) - Reflective striping - Chip-resistant coated front panels - Emergency stop switch - Lockable battery disconnect switch - Low fuel warning beacon - Operational beacon - Two-stage engine air filter - Heated fuel / water separator -Exhaust shield and muffler wrap - Fan and belt guards
Shipping Weight 3,430
Gross Vehicle Weight Rating (GVWR) 4,300
Length - Transport Position 126.9 in
Length - Outriggers Deployed 167.3
Width - Transport Position 76.6
Width - Outriggers Deployed 151
Height Mast Lowered - Transport Position 104.9
Height - Tower Raised 320.0 in (8128 mm) or 26' - 8" (8.1 m)
Shipping 7 units on a 48' or 53' flatbed
Options Arctic Package - Heavy duty battery - Block heater (120 VAC) - Interior work light - Arctic hydraulic fluid Arctic Max Package (Only available with Arctic Package) - Radiator cover - Adjustable air vent cover panels - Diesel fired block heater - Dual heavy duty batteries LED Package - (4) LED Light FIxtures Telematics Engine Air Intake Shut-Off Valve Custom Paint Skid Mount available on Standard SKUs
Manuals



** Prime horsepower rating provided by engine manufacturer.

***Prime generator electrical output per Allmand testing.
