8 IN Rotary Lobe Totally Enclosed W/ Quiet Pack Skid Mount
|
PPSI Rotary Wellpoint Pump |
|

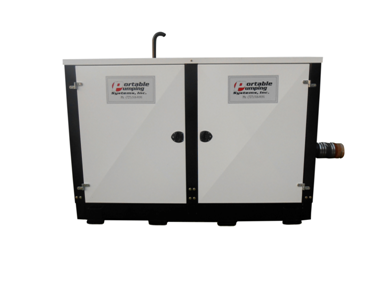

TE8RPQP-SK 8” Skid Unit Totally Enclosed
|
|
|
|
View and Print Specification Sheet
|
SPECIFICATIONS |
|||
|
Volume: |
1330 GPM Max |
||
|
CFM: |
174 CFM |
||
|
Ware Plates: |
Stainless Ware Plates |
||
|
Solids: |
Up To 2.0” Compressible |
||
|
Seals: |
Duronite Seal Assembly |
||
|
Working PSI: |
Up To 25 PSI |
||
|
Shut Downs: |
Hi – Low Vacuum |
||
|
ENGINE |
|||
|
Model: |
Yanmar 3TNV84T-BDSA Diesel |
||
|
Type: |
Water Cooled 3 Cylinder |
||
|
Start: |
12 Volt Electric |
||
|
Fuel: |
Diesel fuel |
||
|
Murphy Panel: |
Engine Safety Shut Down For Low Oil PSI & Hi Water Temp |
||
|
Horsepower |
28.8 @ 2000rpm |
||
|
PACKAGE |
|||
|
Skid: |
85” L X 44” W X 64” T With Engine Enclosure |
||
|
Fuel Tank: |
55 Gallons |
||
|
DBA: |
68 dba @ 23’ |
||
|
Weight |
4780 lbs dry weight |
||
|
OPTIONS |
|||
|
· Engine Enclosure |
· Open Skid Mounted |
|
|
|
STANDARD FEATURES |
|||
|
* Lifting Bail * Locking Fuel Cap * 6” X 6” * |
|||
|
