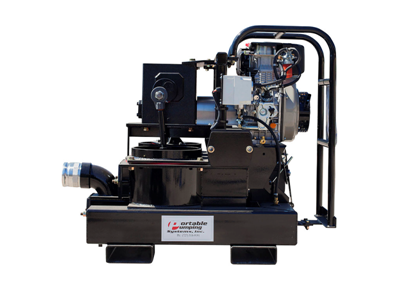

4 Inch Double Diaphragm Skid Mounted Diesel Pump

4” Double Diaphragm Pump





4DD-YD-SK-13

4-Inch Diaphragm Pump

 Skid Model

 4 inch double diaphragm economy model pump













View and Print Specification Sheet

SPECIFICATIONS

Volume:

327gpm / 19,620 GPH

Run Time:

52 Hours Per 13 Gallon Tank

Valve Seats:

Stainless Steal

Valve Assembly:

Flapper Style with Stainless Hardware

Diaphragm:

Red Neoprene Rubber

Gear Box:

Worm Gear Oil Lubricated

Diaphragm Rods:

Solid Connecting Rods

Solid Handling

Solids handling cap. Up to 3.5” diameter

ENGINE

Model:

Yanmar L100 Diesel

Type:

Air Cooled

Start:

12 Volt Electric w/Backup Recoil

Fuel:

Diesel fuel

Fuel Tank Cap.

13 Gallons

Horsepower

5.0 @ 2000rpm

PACKAGE

Axle

Forklift Pockets

Wheels

N/A

Hitch

N/A

Weight

1150 lbs

OPTIONS

  • Larger fuel tank for longer run
  • Trailer Mounted
  • Sound Enclosure


STANDARD FEATURES

* Lifting Bail  *4” Male Cams  *Coupling Guard

*Engine Protector  *Low Oil Shutdown  *Locking Battery Box
