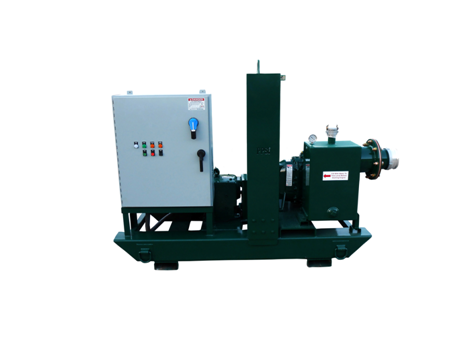

8 Inch Rotary Lobe Electric Skid Mounted Pump

PPSI Rotary Wellpoint Pump





8RPE40-SK

8” Electric Skid Unit



















 View and Print Specification Sheet

SPECIFICATIONS

Volume:

1330 GPM Max

CFM:

174 CFM

Ware Plates:

Stainless Ware Plates

Solids:

Up To 2” Compressible

Seals:

Duronite Seal Assembly

Working PSI:

Up To 25 PSI

Shut Downs:

Hi Water Temp

MOTOR

Model:

Nord SK62-200L4-539 Gear Reduced

Type:

Electric TEFC

Start:

Soft Start

Enclosure:

NEMA 4 Enclosure

Horsepower:

40hp





PACKAGE

Skid:

Heavy Duty Skid Base

Wheels

N/A

Hitch

N/A

Weight

3780 lbs

OPTIONS







STANDARD FEATURES

* Lifting Bail  * 6” X 6” Male Camlocks *
